N33M Ndfeb cylinder magnet Diameter 2''x Height 0.5'' from China manufacturer

N33M Ndfeb cylinder magnet Diameter 2''x Height 0.5''

Price:	0.1 USD
Payment Terms:	T/T,L/C,WU;PAYPAL
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 33M

Production Capacity: 100ton/year

Delivery Date: about 10 to 15 days

Shape: Stick

Composite: NdFeB Magnet

BrmT(KG): 1130-1170(11.3-11.7)

BH(max): 247-263(31-33)

Certificate: ISO9001:2008

Means of Transport: Ocean,Land,Air;internationa...

Packing: carton

Application: Industrial Magnet

Type: Permanent

Brand Name: xingde

Hcj KA/m(KOe): >=1114(>=14)

Max Working temperature: 100℃

Usage: Industry, machines, etc

1. Size: cylinder 2"X1/2", or despoke size
2. Color: golden
3. Certificate: ISO9001:2008
4. Grade: N,M,H,SH,UH,EH

33M Neodymium magnet Cylinder Diameter 2 x Height 1/2Gold coating

The north pole of a magnet is the pole that, when the magnet is freely suspended, points towards the Earth's North Magnetic Pole which is located in northern Canada. Since opposite poles (north and south) attract, the Earth's "North Magnetic Pole" is thus actually the south pole of the Earth's magnetic field.

As a practical matter, in order to tell which pole of a magnet is north and which is south, it is not necessary to use the Earth's magnetic field at all. For example, one method would be to compare it to an electromagnet, whose poles can be identified by the right-hand rule. The magnetic field lines of a magnet are considered by convention to emerge from the magnet's north pole and reenter at the south pole.

The performance of neodymium magnet

Material Code		Br		Hcj		BH(max)		Max Working temperature
Material Code		KGs	T	Koe	KA/m	MGOe	KJ/m3	(Tw)
N52		1430-1480	14.3-14.8	>=11	>=876	50-53	398-422	80℃
N50		1400-1450	14.0-14.5	>=11	>=876	48-51	398-423	80℃
N48		1380-1420	13.8-14.2	>=12	>=955	46-49	366-390	80℃
N45		1320-1380	13.2-13.8	>=12	>=955	43-46	342-366	80℃
N42		1280-1320	12.8-13.2	>=12	>=955	40-43	318-342	80℃
N40		1250-1280	12.5-12.8	>=12	>=955	38-41	302-326	80℃
N38		1220-1250	12.2-12.5	>=12	>=955	36-39	287-310	80℃
N35		1170-1220	11.7-12.2	>=12	>=955	33-36	263-287	80℃
50M		1400-1450	14.0-14.5	>=14	>=1114	48-51	382-406	100℃
48M		1360-1430	13.6-14.3	>=14	>=1114	46-49	366-390	100℃
45M		1320-1380	13.2-13.8	>=14	>=1114	43-46	342-366	100℃
42M		1280-1320	12.8-13.2	>=14	>=1114	40-43	318-342	100℃
40M		1250-1280	12.5-12.8	>=14	>=1114	38-41	302-326	100℃
38M		1220-1250	12.2-12.5	>=14	>=1114	36-39	287-310	100℃
35M		1170-1220	11.7-12.2	>=14	>=1114	33-36	263-287	100℃
33M		1130-1170	11.3-11.7	>=14	>=1114	31-33	247-263	100℃
30M		1080-1130	10.8-11.3	>=14	>=1114	28-31	223-247	100℃
48H		1370-1430	13.7-14.3	>=17	>=1353	46-49	366-390	120℃
45H		1320-1380	13.2-13.8	>=17	>=1353	43-46	342-366	120℃
42H		1280-1320	12.8-13.2	>=17	>=1353	40-43	318-342	120℃
40H		1250-1280	12.5-12.8	>=17	>=1353	38-41	302-326	120℃
38H		1220-1250	12.2-12.5	>=17	>=1353	36-39	287-310	120℃
35H		1170-1220	11.7-12.2	>=17	>=1353	33-36	263-287	120℃
33H		1130-1170	11.3-11.7	>=17	>=1353	31-34	247-271	120℃
30H		1080-1130	10.8-11.3	>=17	>=1353	28-31	223-247	120℃
45SH		1320-1380	13.2-13.8	>=20	>=1592	43-46	342-366	150℃
42SH		1280-1320	12.8-13.2	>=20	>=1592	40-43	318-342	150℃
40SH		1240-1280	12.5-12.8	>=20	>=1592	38-41	302-326	150℃
38SH		1220-1250	12.2-12.5	>=20	>=1592	36-39	287-310	150℃
35SH		1170-1220	11.7-12.2	>=20	>=1592	33-36	263-287	150℃
33SH		1130-1170	11.3-11.7	>=20	>=1592	31-34	247-271	150℃
30SH		1080-1130	10.8-11.3	>=20	>=1592	28-31	223-247	150℃
40UH	1240-1280		12.5-12.8	>=25	>=1990	38-41	302-326	180℃
38UH	1220-1250		12.2-12.5	>=25	>=1990	36-39	287-310	180℃
35UH	1180-1220		11.8-12.2	>=25	>=1990	33-36	263-287	180℃
33UH	1130-1170		11.3-11.7	>=25	>=1990	31-34	247-271	180℃
30UH	1080-1130		10.8-11.3	>=25	>=1990	28-31	223-247	180℃
28UH	1020-1080		10.2-10.8	>=25	>=1990	26-29	207-231	180℃
38EH	1220-1250		12.2-12.5	>=30	>=2388	36-39	287-310	200℃
35EH	1170-1220		11.7-12.2	>=30	>=2388	33-36	263-287	200℃
33EH	1130-1170		11.3-11.7	>=30	>=2388	31-34	247-271	200℃
30EH	1080-1130		10.8-11.3	>=30	>=2388	28-31	223-247	200℃
28EH	1040-1090		10.4-10.9	>=30	>=2388	26-29	207-231	200℃

1, Stabilization of 33M Neodymium magnet cylinder Diameter 2"x Height 1/2" Golden coating

Exposing a magnet to demagnetizing influences which are expected in the application in order to prevent irreversible loss during the operation of the magnet.

2,Drawing of 33M Neodymium magnet cylinder Diameter 2"x Height 1/2" Golden coating

33M Neodymium magnet Synlinder Diameter 2 x Height 1/2Golden coating

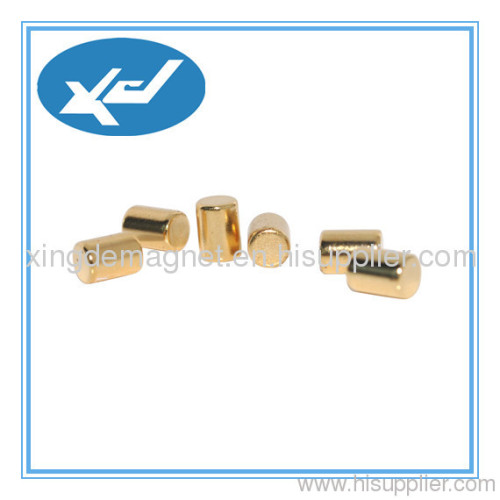

3, Photo of 33M Neodymium magnet cylinder Diameter 2"x Height 1/2" Golden coating

Ningbo Xingde Magnet Co.,Ltd locates in Ningbo China, which is a professional manufacturer of NdFeB magnet with over 20 years experience.
Item: Sintered NdFeB magnets
Performance: High remanence, high corective force, high-energy products and high cost performance ratio,
                          but can be easily formed into various shapes and sizes.
Grade: N35-N52, 30M-50M, 30H-48H, 30SH-45SH, 28UH-40UH, 28EH-35EH
Coating: NiCuNi, Znic, Epoxy, passivated and decorated with plated Au, Ag, Cr, etc.
Shape: Cylinder, Ring, Rectangle, Rectangle with countersunk, Arc, Segment, Disk, Round, etc.
Usage: widely used, like Aviation, Electronics, Instruments, Meters, Machines, Medical Instrument, etc.
              Besides, it is especially suitable for the development of high performance, compact and light
              products.
Certificate: ISO9001:2008
