N35M NdFeB cylinder magnet Diameter 2"x Height 1/2" from China manufacturer

N35M NdFeB cylinder magnet Diameter 2"x Height 1/2"

Price:	0.1 USD
Payment Terms:	T/T,L/C,WU;PAYPAL
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 30M

Production Capacity: 100ton/year

Delivery Date: about 10days

Shape: Stick

Composite: NdFeB Magnet

BrmT(KG): 1080-1130(10.8-11.3)

BH(max): 223-247(28-31)

Certificate: ISO9001:2008

Means of Transport: Ocean,Land,Air;internationa...

Packing: carton

Application: Industrial Magnet

Type: Permanent

Brand Name: xingde

Hcj KA/m(KOe): >=1114(>=14)

Max Working Tempreature: 100℃

Usage: Industry, machines, etc

1. Certifiacate: ISO9001:2008
2. Grade: N.M.H.SH,UH,EH
3. NiCuNi coating, Zn coating, etc.
4. Bespoke size

30M Neodymium magnet cylinder Diameter 2 x Height 1/2

The north pole of a magnet is the pole that, when the magnet is freely suspended, points towards the Earth's North Magnetic Pole which is located in northern Canada. Since opposite poles (north and south) attract, the Earth's "North Magnetic Pole" is thus actually the south pole of the Earth's magnetic field.

As a practical matter, in order to tell which pole of a magnet is north and which is south, it is not necessary to use the Earth's magnetic field at all. For example, one method would be to compare it to an electromagnet, whose poles can be identified by the right-hand rule. The magnetic field lines of a magnet are considered by convention to emerge from the magnet's north pole and reenter at the south pole.

The performance of neodymium magnet

Material Code		Br		Hcj		BH(max)		Max Working temperature
Material Code		KGs	T	Koe	KA/m	MGOe	KJ/m3	(Tw)
N52		1430-1480	14.3-14.8	>=11	>=876	50-53	398-422	80℃
N50		1400-1450	14.0-14.5	>=11	>=876	48-51	398-423	80℃
N48		1380-1420	13.8-14.2	>=12	>=955	46-49	366-390	80℃
N45		1320-1380	13.2-13.8	>=12	>=955	43-46	342-366	80℃
N42		1280-1320	12.8-13.2	>=12	>=955	40-43	318-342	80℃
N40		1250-1280	12.5-12.8	>=12	>=955	38-41	302-326	80℃
N38		1220-1250	12.2-12.5	>=12	>=955	36-39	287-310	80℃
N35		1170-1220	11.7-12.2	>=12	>=955	33-36	263-287	80℃
50M		1400-1450	14.0-14.5	>=14	>=1114	48-51	382-406	100℃
48M		1360-1430	13.6-14.3	>=14	>=1114	46-49	366-390	100℃
45M		1320-1380	13.2-13.8	>=14	>=1114	43-46	342-366	100℃
42M		1280-1320	12.8-13.2	>=14	>=1114	40-43	318-342	100℃
40M		1250-1280	12.5-12.8	>=14	>=1114	38-41	302-326	100℃
38M		1220-1250	12.2-12.5	>=14	>=1114	36-39	287-310	100℃
35M		1170-1220	11.7-12.2	>=14	>=1114	33-36	263-287	100℃
33M		1130-1170	11.3-11.7	>=14	>=1114	31-33	247-263	100℃
30M		1080-1130	10.8-11.3	>=14	>=1114	28-31	223-247	100℃
48H		1370-1430	13.7-14.3	>=17	>=1353	46-49	366-390	120℃
45H		1320-1380	13.2-13.8	>=17	>=1353	43-46	342-366	120℃
42H		1280-1320	12.8-13.2	>=17	>=1353	40-43	318-342	120℃
40H		1250-1280	12.5-12.8	>=17	>=1353	38-41	302-326	120℃
38H		1220-1250	12.2-12.5	>=17	>=1353	36-39	287-310	120℃
35H		1170-1220	11.7-12.2	>=17	>=1353	33-36	263-287	120℃
33H		1130-1170	11.3-11.7	>=17	>=1353	31-34	247-271	120℃
30H		1080-1130	10.8-11.3	>=17	>=1353	28-31	223-247	120℃
45SH		1320-1380	13.2-13.8	>=20	>=1592	43-46	342-366	150℃
42SH		1280-1320	12.8-13.2	>=20	>=1592	40-43	318-342	150℃
40SH		1240-1280	12.5-12.8	>=20	>=1592	38-41	302-326	150℃
38SH		1220-1250	12.2-12.5	>=20	>=1592	36-39	287-310	150℃
35SH		1170-1220	11.7-12.2	>=20	>=1592	33-36	263-287	150℃
33SH		1130-1170	11.3-11.7	>=20	>=1592	31-34	247-271	150℃
30SH		1080-1130	10.8-11.3	>=20	>=1592	28-31	223-247	150℃
40UH	1240-1280		12.5-12.8	>=25	>=1990	38-41	302-326	180℃
38UH	1220-1250		12.2-12.5	>=25	>=1990	36-39	287-310	180℃
35UH	1180-1220		11.8-12.2	>=25	>=1990	33-36	263-287	180℃
33UH	1130-1170		11.3-11.7	>=25	>=1990	31-34	247-271	180℃
30UH	1080-1130		10.8-11.3	>=25	>=1990	28-31	223-247	180℃
28UH	1020-1080		10.2-10.8	>=25	>=1990	26-29	207-231	180℃
38EH	1220-1250		12.2-12.5	>=30	>=2388	36-39	287-310	200℃
35EH	1170-1220		11.7-12.2	>=30	>=2388	33-36	263-287	200℃
33EH	1130-1170		11.3-11.7	>=30	>=2388	31-34	247-271	200℃
30EH	1080-1130		10.8-11.3	>=30	>=2388	28-31	223-247	200℃
28EH	1040-1090		10.4-10.9	>=30	>=2388	26-29	207-231	200℃

1, Maxwell of 30M Neodymium magnet cylinder Diameter 2"x Height 1/2"

A unit of magnetic flux. One Maxwell is one line of magnetic flux.

Ceramic, or ferrite, magnets are made of a sintered composite of powdered iron oxide and barium/strontium carbonate ceramic. Given the low cost of the materials and manufacturing methods, inexpensive magnets (or non-magnetized ferromagnetic cores, for use in electronic components such as radio antennas, for example) of various shapes can be easily mass-produced. The resulting magnets are non-corroding but brittle and must be treated like other ceramics.

2, Drawing of 30M Neodymium magnet cylinder Diameter 2"x Height 1/2"

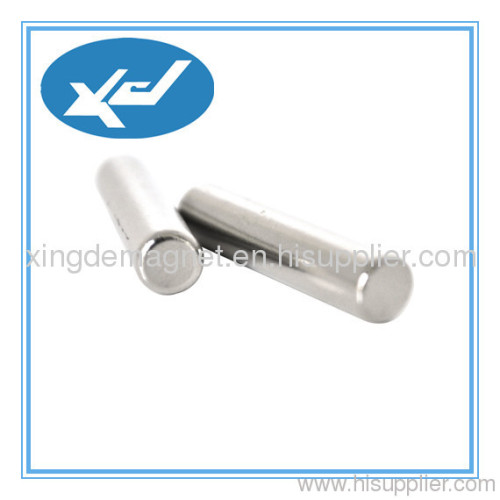

30M Neodymium magnet Synlinder Diameter 2 x Height 1

3, Picture of 30M Neodymium magnet cylinder Diameter 2"x Height 1/2"

Ningbo Xingde Magnet Co.,Ltd, locates in southern surburb of Ningbo, who is specialized in production of up to date magnetic material - NdFeB, and technology development. Our company has advanced manufacturing process and test equipments, outstanding technologist of management and administration. Now with more than 3500 square meter workshop and nearly 200 staffs, we own the ability of annual production of over 1000 ton high performance sintered NdFeb magnets.
Our company was established in 1992, and the various products of NdFeB permanent magnets have characteristics of high-energy, high corrective force and high induction. The company passed ISO9001:2008 quality management system certification. "Conscientiousness and responisibity makes the customers satisfactory." is the management aim of our enterprise.
Ningbo Xingde Magnet Co.,Ltd would offer various NdFeB magnetic products with high quality and competitive price sincerely for each customer.
