N52 R11x12.67x2.46x2.26x2.21mm triangle Apple's MAGNET from China manufacturer

N52 R11x12.67x2.46x2.26x2.21mm triangle Apple's MAGNET

Price:	0.1 USD
Payment Terms:	T/T,L/C;PAYPAL
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: N52

Production Capacity: 1200TON

Delivery Date: WITHIN 10DAYS

Shape: Others

Composite: NdFeB Magnet

BrmT(KG): 1430-1480(14.3-14.8)

Hcj KA/m(KOe): >=876(>=11)

Tw: 80°C

Flux: >15200Gauss

Means of Transport: Ocean,Land,Air;express

Packing: carton, wood case

Application: Industrial Magnet

Type: Permanent

Brand Name: Xingde

Hcb KA/m(KOe): >=836(>=10.5)

(BH)max: KJ/m3(MGOe)

Coating: Zn,Ni,Expoxy,NiCuNi ,Golden...

Size: R11x12.67x2.46x2.26x2.21mm

TYPICAL MAGNETIC USES & APPLICATIONS
Permanent magnets are used in a wide variety application in all industries but they can all be classified.

N52 R11x12.67x2.46x2.26x2.21mm triangle Apple's Ipad neodymium magnet

Conversion of Electrical Energy to Physical Motion
Actuators, speakers, motors, meters and other instrumentation.

Conversion of Physical Motion into Electrical Energy
Generators, microphones and sensors.

Producing Mechanical Energy
Holding, lifting, attracting, repelling, conveying, driving & separating

Controlling Fields
Annealing, plasma control, sputtering, focusing & NMR.

Mechanical to Heat
Eddie Current and Hysteresis drives

N52 R11x12.67x2.46x2.26x2.21mm triangle Apple's Ipad neodymium magnet

Product Name: Triangle magnet
Place of Origin: Zhejiang, China (Mainland)
Application: Iphone, Ipad, Industry, Electronics, etc

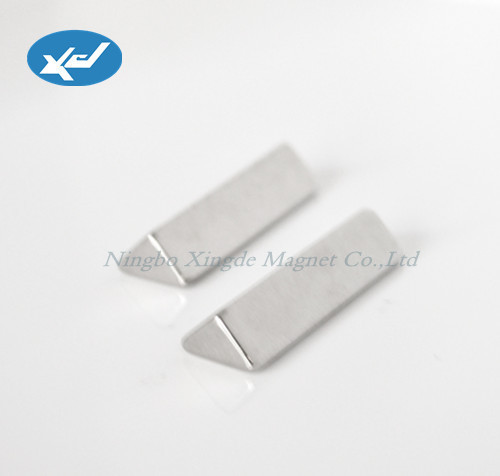

Triangle magnet
1. Materials: Rare earth magnet
2. Certification: ISO9001: 2008
3. Magnetic properties: High coercive force, (BH)max from 33 to 53MGOe, max working Temperature up to 230° C.
4. Grades: N35, N38, N40, N42, N45, N48, N50, 35M, 38M, 40M, 42M, 45M, 48M, 35H, 38H, 40H, 42H, 45H, 30SH, 33SH, 35SH. 38SH, 40SH, 42SH, 28UH, 30UH, 33UH, 35UH, 38UH, 28EH, 30EH, 33EH, 35EH etc
5. Shapes: Triangle or produce many shapes according to your request, Block, Sphere, Disc, Ring, Segment, Cylinder, Sheet and so on.
6. Sizes: R x r x H x Degree as per your request
7. Coatings: Metallic Zinc, Nickel, Nickel+Nickel, Copper+Nickel, Nickel+copper+Nickel, Gold, Organic Epoxy, Nickel+Epoxy coating and so on;
8. Applications: Widely used in electronics, Iphone, Ipad, etc.
9. Parameters: Grade(property), Size(R x r x H x Degree) or Drawing, Coating, Quantity, etc.
10. Note: Our NdFeB triangle magnet can produce as per your design, glad to give some suggestions if you need.
We provide a huge selection of triangle NdFeB Magnet commonly used in many wind generator plans with high coercivity, low temperature.

Performance of N52 R11x12.67x2.46x2.26x2.21mm triangle Apple's Ipad neodymium magnet

Material Code		Br		Hcj		BH(max)		Max Working temperature
KGs	T	Koe	KA/m	MGOe	KJ/m3	(Tw)
N52		1430-1480	14.3-14.8	>=11	>=876	50-53	398-422	60℃
N50		1400-1450	14.0-14.5	>=11	>=876	48-51	398-423	60℃
N48		1380-1420	13.8-14.2	>=12	>=955	46-49	366-390	80℃
N45		1320-1380	13.2-13.8	>=12	>=955	43-46	342-366	80℃
N42		1280-1320	12.8-13.2	>=12	>=955	40-43	318-342	80℃
N40		1250-1280	12.5-12.8	>=12	>=955	38-41	302-326	80℃
N38		1220-1250	12.2-12.5	>=12	>=955	36-39	287-310	80℃
N35		1170-1220	11.7-12.2	>=12	>=955	33-36	263-287	80℃
50M		1400-1450	14.0-14.5	>=14	>=1114	48-51	382-406	100℃
48M		1360-1430	13.6-14.3	>=14	>=1114	46-49	366-390	100℃
45M		1320-1380	13.2-13.8	>=14	>=1114	43-46	342-366	100℃
42M		1280-1320	12.8-13.2	>=14	>=1114	40-43	318-342	100℃
40M		1250-1280	12.5-12.8	>=14	>=1114	38-41	302-326	100℃
38M		1220-1250	12.2-12.5	>=14	>=1114	36-39	287-310	100℃
35M		1170-1220	11.7-12.2	>=14	>=1114	33-36	263-287	100℃
33M		1130-1170	11.3-11.7	>=14	>=1114	31-33	247-263	100℃
30M		1080-1130	10.8-11.3	>=14	>=1114	28-31	223-247	100℃
48H		1370-1430	13.7-14.3	>=17	>=1353	46-49	366-390	120℃
45H		1320-1380	13.2-13.8	>=17	>=1353	43-46	342-366	120℃
42H		1280-1320	12.8-13.2	>=17	>=1353	40-43	318-342	120℃
40H		1250-1280	12.5-12.8	>=17	>=1353	38-41	302-326	120℃
38H		1220-1250	12.2-12.5	>=17	>=1353	36-39	287-310	120℃
35H		1170-1220	11.7-12.2	>=17	>=1353	33-36	263-287	120℃
33H		1130-1170	11.3-11.7	>=17	>=1353	31-34	247-271	120℃
30H		1080-1130	10.8-11.3	>=17	>=1353	28-31	223-247	120℃
45SH		1320-1380	13.2-13.8	>=20	>=1592	43-46	342-366	150℃
42SH		1280-1320	12.8-13.2	>=20	>=1592	40-43	318-342	150℃
40SH		1240-1280	12.5-12.8	>=20	>=1592	38-41	302-326	150℃
38SH		1220-1250	12.2-12.5	>=20	>=1592	36-39	287-310	150℃
35SH		1170-1220	11.7-12.2	>=20	>=1592	33-36	263-287	150℃
33SH		1130-1170	11.3-11.7	>=20	>=1592	31-34	247-271	150℃
30SH		1080-1130	10.8-11.3	>=20	>=1592	28-31	223-247	150℃
40UH	1240-1280		12.5-12.8	>=25	>=1990	38-41	302-326	180℃
38UH	1220-1250		12.2-12.5	>=25	>=1990	36-39	287-310	180℃
35UH	1180-1220		11.8-12.2	>=25	>=1990	33-36	263-287	180℃
33UH	1130-1170		11.3-11.7	>=25	>=1990	31-34	247-271	180℃
30UH	1080-1130		10.8-11.3	>=25	>=1990	28-31	223-247	180℃
28UH	1020-1080		10.2-10.8	>=25	>=1990	26-29	207-231	180℃
38EH	1220-1250		12.2-12.5	>=30	>=2388	36-39	287-310	200℃
35EH	1170-1220		11.7-12.2	>=30	>=2388	33-36	263-287	200℃
33EH	1130-1170		11.3-11.7	>=30	>=2388	31-34	247-271	200℃
30EH	1080-1130		10.8-11.3	>=30	>=2388	28-31	223-247	200℃
28EH	1040-1090		10.4-10.9	>=30	>=2388	26-29	207-231	200℃

N52 R11x12.67x2.46x2.26x2.21mm triangle Apple

NdFeB, the third generation of rare-earth permanent magnet, not only owns the high remanence, high corrective force, high-energy products and high cost performance ratio, but can be easily formed into various shapes and sizes. Avoiding the surface of the magnet being oxidized, ensuring the design of the products and its corrosion resistance to be widely applied in different conditions, it will be coated with Ni-Cu-Ni, Zn, Epoxy, passivated and decorated with plated Au, Ag, Cr. NdFeB magnetic products are widely used in several fields such as aviation, electronics, instruments, meters, machines, medical instrument, etc. Besides, it is especially suitable for the development of high performance, compact and light products.
